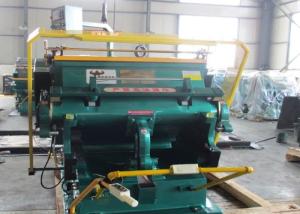

CE Standard Corrugated Die Cutting Machine Carton Cutting Machine
Use:
Die cutting & creasing machine, through the imprinting plate to apply a certain pressure, the print or paper board rolled into a certain shape, the shape is mainly used for cardboard, corrugated board, plastic sheet, leather, cork, self-adhesive, EVA, double The die-cutting (full-cut, half-cut) of plastic, electronic and other materials is an important equipment for post-press packaging and forming.
Traits:
1. The casting is made of HT250 gray cast iron, which is then annealed so that the casting (including the fuselage, press frame, etc.) is not easily deformed or broken.
2. The main shaft adopts tetraphosphorus chromium steel, after quenching and tempering to improve the strength, rigidity and hardness of the main shaft so as to achieve the effect of not easily deforming.
3. The main parts of the gears use tetraphosphorus chromium steel, after quenching and tempering.
4. The machine's rail lining plate is made of 38 chrome molybdenum aluminum. After nitriding treatment, the hardness is increased, and it is not easy to wear. It can keep the pressure of the machine up and down for a long time to maintain balance and stability.
5. Single-plate electromagnetic clutch is sensitive and reliable.
6. Continuously cut and open the delay function, the delay range can be adjusted freely.
7. The transmission link (pull arm) adopts nodular cast iron, which has strong strength and toughness and strong tensile strength.
8. The key parts of the bearing adopt Harbin bearing.
9. Centralized refueling, manual refueling (optional) lubrication system can better ensure the smooth flow of the oil circuit, and the maintenance of the lubrication system is more convenient.
10. Transmission bushings are made of composite copper bushes (ensure lubrication) and connecting rods are made of pure copper and copper bushings. Make the machine more precise.
11. The electrical machinery of China Chint and imported Snyder (Export LG and Siemens).
12. Hand-triangular limit switch, emergency stop switch, hand push rod limit switch, three safety devices to ensure safety.
13. Can be installed inside and outside the movable frame, loading plate (standard is an external movable frame).
| Model |
Max.Rule Area |
Working speed |
Creasing cut length |
Motor |
weight |
Overall Dimensions(L×W×H) |
| PYQ401C |
750×520mm |
28±2(strokes/min) |
＜15m |
2.2kw |
2000kg |
1260×1350×1280mm |
| PYQ203D |
930×670mm |
23±2(strokes/min) |
＜25m |
4.0kw |
3000kg |
1670×1670×1630mm |
| ML1100 |
1100×800mm |
20±2(strokes/min) |
＜32m |
4.0kw |
4500kg |
1900×1800×1700mm |
| ML1200 |
1200×830mm |
20±2(strokes/min) |
＜35m |
4.0kw |
4800kg |
1900×2000×1700mm |
| ML1300 |
1300×920mm |
18±2(strokes/min) |
＜40m |
5.5kw |
6000kg |
2000×2400×1800mm |
| ML1400 |
1400×1000mm |
18±2(strokes/min) |
＜45m |
5.5kw |
6500kg |
2000×2450×1900mm |
| ML1500 |
1500×1050mm |
18±2(strokes/min) |
＜45m |
5.5kw |
7000kg |
2000×2500×1930mm |
| ML1600 |
1600×1250mm |
16±2(strokes/min) |
＜50m |
11kw |
11000kg |
2170×2560×2230mm |
| ML1800 |
1800×1300mm |
16±2(strokes/min) |
＜62m |
15kw |
13500kg |
2240×2800×2130mm |
